Fiber Expansion Modules (12x0, 0x16, 008ASM)

Norstar 12x0 Fiber Trunk Module (NTBB20FB, NTBB20FG)

  • Vendor:Nortel
FREE Ground Shipping for orders over $500!
  Always only $9.95 for orders under $500!*
  • Like New: $199.88
Availability: In Stock
$199.88

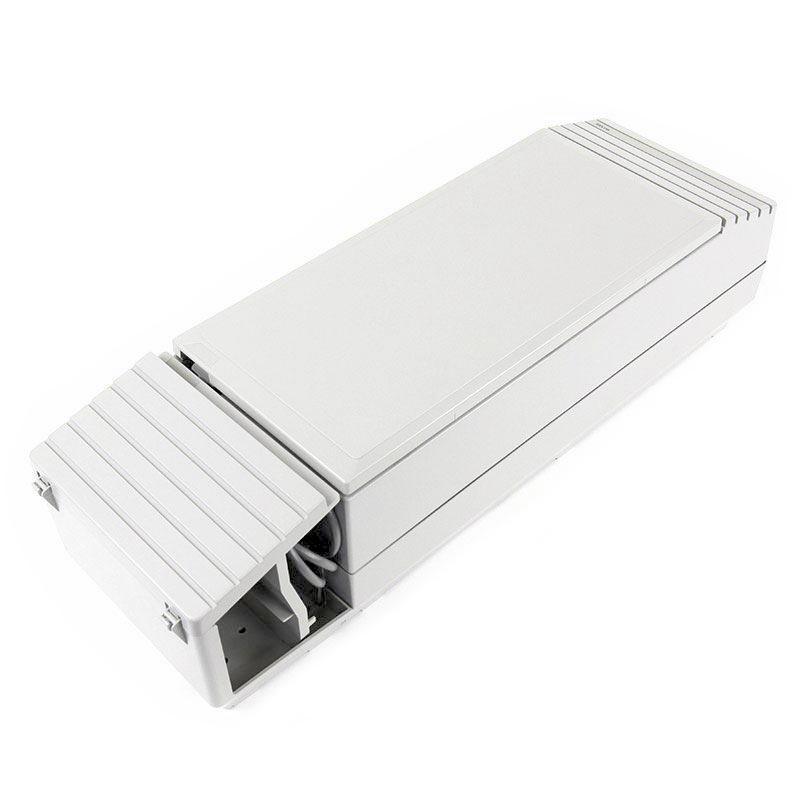

Norstar Fiber Trunk Module (12x0) - (NTBB20FB, NTBB20FG)

The Norstar Fiber Trunk Module will provide users with 3 expansion slots for trunk cartridges - fiber cable and mounting bracket included.



Budget Option (Grade B) Definition

  • Product is 100% complete and fully functional
  • Full AtlasPhones.com warranty included
  • Grade B Stock imperfection includes discoloration within outer plastic



Features

  • 12x0 Fiber Trunk Modules may be connected to the Modular ICS by a fiber DS30 cable
  • Each Fiber Trunk Module holds up to three trunk cartridges - (DID< LS/DS, E/M, Caller ID and DISA)
  • One emergency transfer port per trunk module
  • All analog trunk cartridges are supported in the fiber trunk module
  • ISDN-BRI cards are supported on Trunk Modules 3 and 4 (2-port expansion) or
    Trunk Modules 7 and 8 (6 or 12-port expansion)
  • T1/PRI digital trunk interface (DTI) cartridges are supported in slot 1 of first 12x0 fiber trunk module
    in MICS 5.0 or higher

Compatibility

  • Compatible with all releases of Norstar Modular ICS
  • To add the Norstar M12X0 Fiber Trunk Module to your Norstar Modular ICS main cabinet, you will need
    one of the following fiber expansion cartridges:
    • 2-Port Fiber Expansion Cartridge
    • 6-Port Fiber Expansion Cartridge
    • 6-Port Combination Fiber Services Cartridge
