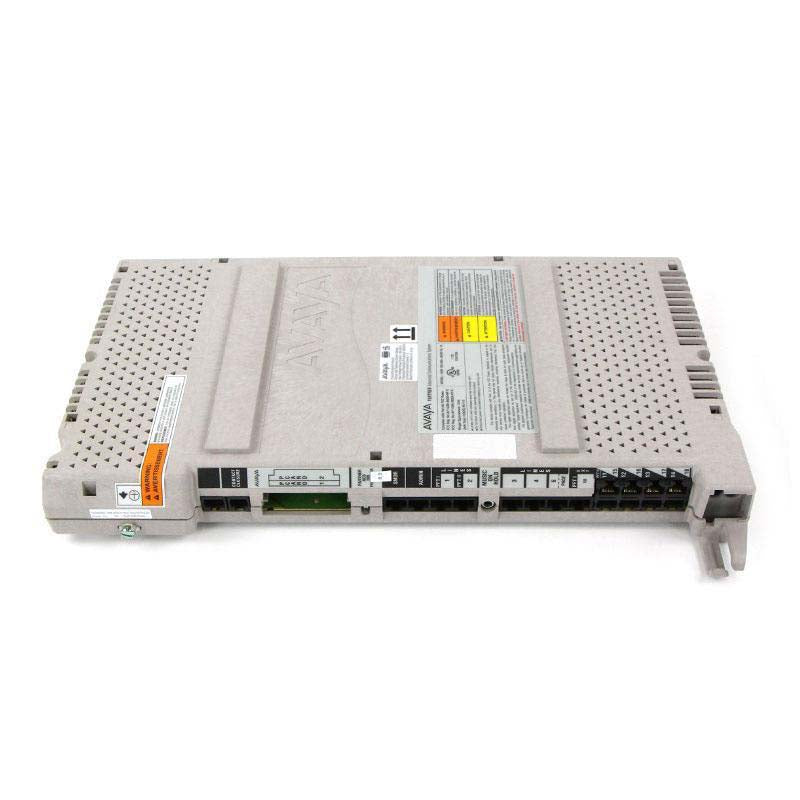

Partner ACS R8 Processor 700469687
The Partner ACS R8 Processor will provide users with five lines and 9 stations. The R8 Processor will supply the users with the ability to personalize features and set away messages on their devices.
Features
- Provides 5 Lines and 9 Stations
- Paging Port - Connect a loudspeaker paging system to a line port
- Administration Port - Built-in serial administration port for use with Partner ACS Remote Administration Software
- Dual Line Caller ID - Supports both Caller ID name and number simultaneously on your display
- Direct Connection of Analog Devices - Answering machines, fax machines, telephones, and modems
- Two Contact-Closure Connections - Control door locks, security systems, and other devices by using the contact-closure adjunct
- Music On-Hold Port - Connect a music source or on-hold messaging system
- Station Message Detail Recording (SMDR) Port - Connect to a serial printer or call accounting solution
- Absent Text Message allows you to post an away message on the display of the Partner 34D or 18D
- Network Time Synchronization allows you to synchronize the system time with your network provider's clock or by the internal system clock
- Hot Dial allows you to set your system phone to go off-hook and start dialing as soon as the dial pad is activated
- Message Alert Notification allows you to program a button to notify you of a message waiting at another extension
- Personalized Station Ringing allows you to assign a personalized ring pattern to an extension for intercom calls
- Override Line Ringing allows you to override the Unique Line Ringing settings for an extension and set all incoming calls to ring with a Personalized Station Ringing pattern
- One Year Warranty
Specifications
- Two Power Failure Transfer Ports - Use single line telephones to connect to your phone lines during power outages
- 2 PC Card Slots - Used for backup/restore of system programming, voice messaging PC cards, ASA/DXD card, and software upgrades
- Back up system programming to internal memory or a PC card
- Partner ACS R8
- Power Cord
- ACS R8 CD Documentation
Compatibility
- Voice Mail Systems - Partner Mail VS (R1-R4.1 and R5.05 or higher), Partner Messaging, and Partner Voice Messaging PC Cards
- Expansion Modules - 200/200E, 206/206E, 308EC, 400E/400EC, 012E, T1, 1600 DSL
- Telephone Sets - Standard Single Line, MLS, Eurostyle, and Eurostyle Series 2
- Also compatible with a variety of wireless, headset and conferencing solutions
- Support for the Avaya 3920 Wireless telephone
- Support for Partner ACS R8.0 PC Administration software
