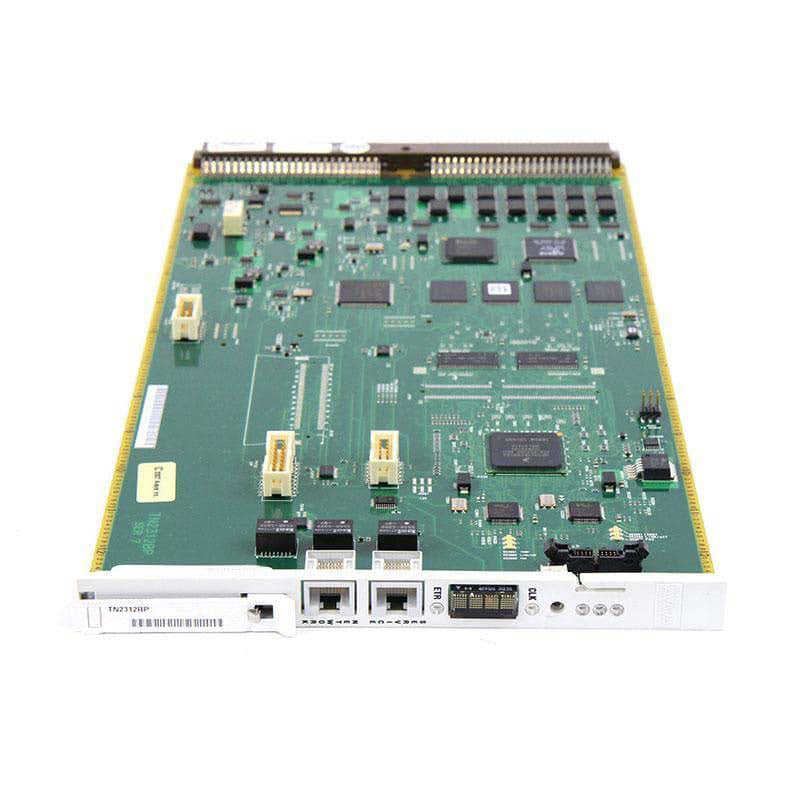

Avaya Definity TN2312BP IP Server Interface (700260359, 700394679, 700463441)
TN2312BP IP Server Interface delivers control messages. The messages are communicated through the S8500, S8700, or S8710 Media Server to the media sever's port networks (PNs) using customer's LAN and WAN. The media server controls the PNs through control messages.
700260359 - HV10
700394679 - HV26
700463441 - HV36
Capabilities
The IPSI always resides in the tone clock slot on a media gateway and uses a 10/100 BaseT interface to connect to:
- The Server
- A laptop computer connected to the server through a services port
Compatibility
- The IPSI is compatible with the CMC1, MCC1, SCC1, G600, and G650
Package Includes
- TN2312BP IP Server Interface
